Name: U Type Box Beam Production Line Automatic Assembling Machine 380V 3PH 50HZ
Brand: Metalwork
Price: 1 USD

Brand Name : Metalwork

Model Number : SBZ12

Certification : CE, ISO, CCC

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Delivery Time : 60 days

Packaging Details : 1 X 40' OT

Voltage : 380V,3PH,50HZ or customerized

Total Power : 0.75X2+11KW

Aftersale Service : Engineers available to service

Machine Overall Size : 4450X2935X3185mm

Color : Blue, Grey Or Customized

Warranty : 1 year

Contact Now

SBZ12 Box Beam Assembling Machine

Features:

Process including clamping and centering web and flange with hydraulic transmission

Both sides clamped and aligned through mechanical system, ensuring positioning of web and flange of various width within specified range accurate automatic alignment, no need to adjust each time eccentricity roller

Upper press beam adapted with right and left 4 groups of guide-way, ensuring pressing stability

Automatic spot welding arc-tracing unit driven with light-duty oil cylinder, without compressed air input, output conveyor and inlet pulling rod system are in segments, length and quantity can be chosen according to workpiece length

Used for inching adjustment hydraulic stopping rack at both sides can ensure alignment of end side of web and flange during assembly

Technical Parameters:

BOX beam width	300 ~ 1,200mm
Box beam height	300 ~ 1,200mm
Box beam length	4,000 ~ 15,000mm
Max loading capacity	20t
Frame moving speed	4/6 m／min
Hydraulic system pressure	14 MPa
Left-right oil cylinder max working pressure	15t
Up oil cylinder max pressure	30 t
Left-right oil cylinder max stroke	800 mm
Up oil cylinder max stroke	900 mm
Moving motor power	0.75w×2
Pump station motor power	11 kw
Roller conveyor motor power(single machine no roller conveyor)	2.2 kw
Roller conveyor conveying speed	9.3 m/min

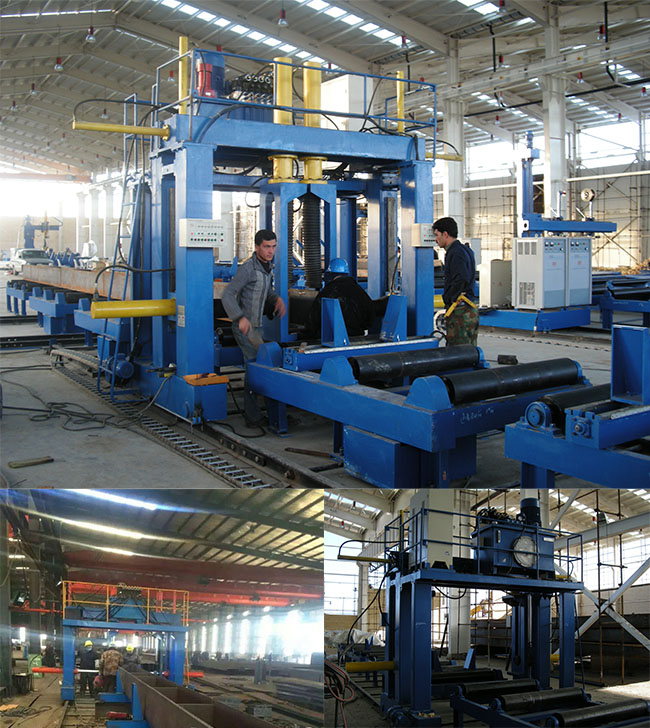

Machines in Using:

U Type Box Beam Production Line Automatic Assembling Machine 380V 3PH 50HZ
